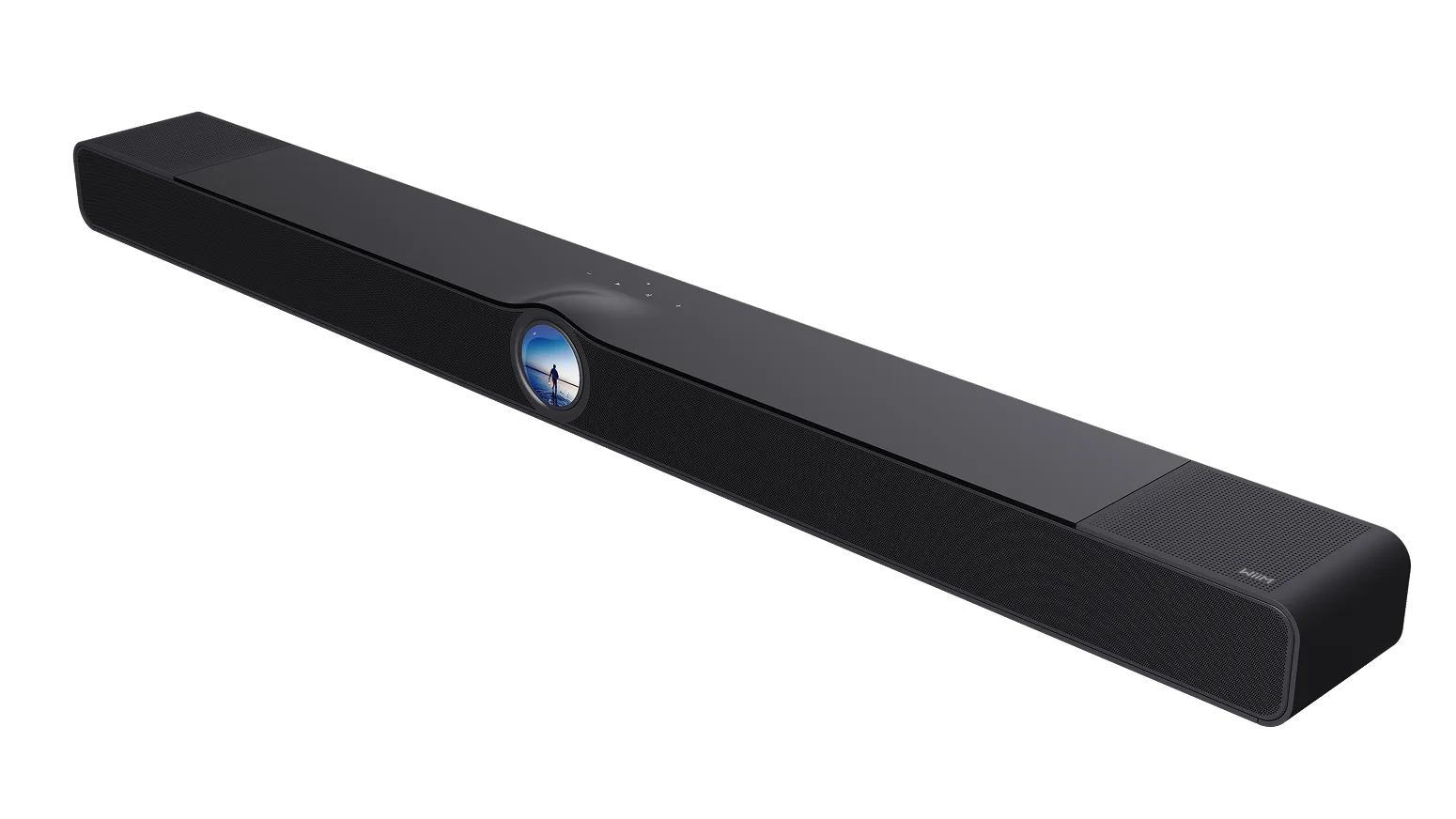

Name: WiiM Bar Dolby Atmos Soundbar
Brand: New Zealand TV & HiFi Limited
SKU: WIIM-BAR
Price: 998.99 NZD
Availability: InStock

"Wireless Dolby Atmos soundbar delivering immersive audio for premium home entertainment. 3.0.2-channel design with 8-driver array, up-ﬁring height
speakers, and Dolby Atmos® / DTS:X support HDMI eARC, Wi-Fi 6E, Bluetooth®, Ethernet, and USB"
- Black or White

Price:

NZ$ 998.99 including GST

NZ$ 868.69 excluding GST

or four payments of $249.75 with
Learn More

Product Code:

WIIM-BAR

Rating:

☆ ☆ ☆ ☆ ☆ ( 0 reviews )

Information
Specifications
Reviews
Associated Items

Meet WiiM Bar

Display-first Dolby Atmos. Expandable to 5.1.2.

Elevate your living room with audiophile-grade 3.0.2 Dolby Atmos® and DTS:X spatial audio. Manage playback, adjust EQ, and view stunning album art directly from a vibrant 2.1” touchscreen. Ready for more? Wirelessly pair with compatible WiiM devices to seamlessly expand this perfect foundation into your ultimate 5.1.2 home theater.

One Bar for Every Way You Listen

Movie night. Morning playlists. Game day. Late-night TV. WiiM Bar fits every moment.

Start a movie through HDMI eARC and feel sound rise above the screen. Switch to music and see album art glow from the soundbar. Group with other WiiM devices for synchronized whole-home listening, or build out your living room with wireless surrounds and subwoofer support when you’re ready.

Movie Night

Dolby Atmos® and DTS:X playback bring cinematic height and immersion to your living room.

Music at a Glance

Album art, track info, playback, EQ, and presets appear right on the 2.1" touch display.

Game Day Energy

A wider soundstage and expandable surround setup help bring action into the room.

Late-Night Calm

Night Mode helps manage loud effects while keeping dialogue easier to hear.

Whole-Home Flow

Group WiiM Bar with compatible WiiM devices for synchronized multi-room music.

Control Without Friction

WiiM Bar gives you multiple ways to control your listening experience. Use the round touch display for quick playback, source selection, EQ, and Smart Presets. Open the WiiM Home App for streaming, grouping, routines, and deeper sound customization. Use Alexa, Google Assistant, or the included Voice Remote for easy everyday control.

Home

Now Playing

Source Picker

Smart Presets

Quick EQ

Custom Clock Faces

Your music.Your way.

Total freedom for your listening experience. Stream natively via Spotify and Tidal Connect, or dive into the WiiM Home App to personalize your sound, sync multi-room audio, and browse all your services in one elegant place.

Take full control with the WiiM Bar Voice Remote

WiiM Bar Voice Remote crafted with a sleek body, rechargeable battery, and intuitive Push-to-Talk Alexa—plus smart presets and dedicated playback buttons for a seamless, intuitive experience.

Voice Control

Enjoy hands-free listening using an external Alexa or Google Home device.

Sound That Adapts to Real Rooms and Real Life

RoomFit™ auto-correction helps tailor playback to your room layout and speaker placement. Clear Voice and AI Dialog Enhancement help bring speech forward during busy scenes, while Night Mode helps reduce dramatic volume swings for lower-volume listening.

AI RoomFit™

Night Mode

Voice Mode

Movie Mode

Music Mode

One tap in the WiiM Home App analyzes your room using the phone's mics, then optimizes response for balanced, fatigue‑free sound—no trial‑and‑error or extra gear.

Built for Cinema. Tuned for Music.

An 8-driver acoustic system with 4 passive radiators, top-firing height channels, and 135W system power.

Behind the sleek form is a serious acoustic system: three front mid-woofers, three front tweeters, two top full-range height drivers, and four passive radiators. Together, they support a wide soundstage, clear vocals, height effects, and stronger bass performance from a single soundbar.

Front Mid-Woofers

Body, warmth, and presence

Front Tweeters

Clarity for vocals and texture

Top-Firing Channels

Designed for Atmos height effects

135W

Total System Power

Built for room-filling sound

Built for Modern Home Theater

Connect through HDMI eARC and enjoy support for LPCM, Dolby Atmos/TrueHD/DD+, AC3, DTS, and DTS:X. Stream over Wi‑Fi 6E or Ethernet, connect through Bluetooth 5.4, or use optical, line-in, USB Audio In/Out, and USB Host for flexible playback.

Streaming Ecosystem

The Freedom of WiiM Streaming

Stream from the WiiM Home App or connect through Google Cast Audio, Spotify Connect, TIDAL Connect, Qobuz Connect, Amazon Music Cast, DLNA/UPnP, Qplay 3.0, LMS, and Roon.

Expandable WiiM Home Theater

Start with the bar. Build the theater.

Experience cinematic 3.0.2 Dolby Atmos® and DTS:X® right out of the box. When you're ready, wirelessly add compatible WiiM surrounds and a subwoofer to build a fully immersive 5.1.2 theater at your own pace—no messy cables required.

Step 01

3.0.2 Soundbar

Immerse yourself in cinematic Dolby Atmos® and DTS:X® sound from a single, elegant soundbar.

Step 02

Wireless Surround Expansion

Place compatible WiiM speakers behind your sofa to pull the action off the screen and bring the scene right around you.

Step 03

Up to 5.1.2 System

Add subwoofer support to deliver deep, chest-thumping low-end energy for your movies, games, and music.

A New Centerpiece for the WiiM Ecosystem

Designed for movies, music, and whole-home audio—coming Q3 2026.

WiiM Bar brings the simplicity, flexibility, and high-performance streaming experience of WiiM into the living room. It was previewed as WiiM’s first soundbar at High End Vienna 2026 and is designed to anchor TV audio, music streaming, wireless surround expansion, and multi-room listening in one system.

WHAT'S IN THE BOX

WiiM BarWiiM Bar RemoteUser GuidePower CableHDMI CableOptical CableWall Brackets

WiiM Bar

WiiM Bar brings cinematic sound, WiiM streaming, a 2.1-inch round touch display, and scalable home theater expansion into one display-first smart soundbar. Start with immersive 3.0.2 Dolby Atmos® and DTS:X playback, then expand into a WiiM-powered 5.1.2 home theater with compatible WiiM devices sold separately.

Overview

Product name : WiiM Bar

Model name : WiiM Bar

Model number : BAR001

Product type : Display-first smart soundbar

Tagline : See the Sound. Build the Theater.

Channel layout : 3.0.2

Expandable home theater : Expandable to 5.1.2 with compatible WiiM surround and subwoofer devices

Primary use cases : TV, movies, music streaming, gaming, whole-home audio, scalable home theater

Control options : Touch display, WiiM Home App, voice control, and WiiM Bar Remote

Audio System

Acoustic system : 8-driver acoustic system with 4 passive radiators

Front mid-woofers : 0.12 × 4.33 × 2.05 inches ( 3 x 110 × 52 mm) mid-woofers

Front tweeters : 0.12 × 2.05 × 2.05 inches (3 x 52 × 52 mm) tweeters

Top height drivers : 0.08 × 2.05 × 2.05 inches (2 x 52 × 52 mm) full-range drivers

Passive radiators : 0.16 × 4.53 × 1.97 inches (4 x 115 × 50 mm) passive radiators, front × 2 and rear × 2

Max system power : 135 W

Native channel layout : 3.0.2

Height effects : Top-firing height channels

Audio Formats & Home Theater

Supported audio formats : LPCM, Dolby Atmos/TrueHD/DD+, AC3, DTS, DTS:X

Dolby Atmos support : Yes, via supported content and compatible input setup

DTS:X support : Yes

HDMI home theater connection : HDMI eARC

Native configuration : 3.0.2 Dolby Atmos and DTS:X soundbar

Expandable configuration : Up to 5.1.2 with compatible WiiM surround and subwoofer devices

Surround expansion : Wireless surround support with compatible WiiM devices

Subwoofer expansion : Wireless subwoofer support with compatible WiiM devices

Smart Audio & EQ

Room correction : RoomFit™ auto-correction

Dialogue enhancement : Clear Voice and AI Dialog Enhancement

Night listening : Night Mode

Sound modes : Movie Mode, Music Mode, Voice Enhance Mode, Night Mode

Preset EQ : 24 preset EQ settings

Graphic EQ : 10-band Graphic EQ

Parametric EQ : 10-band Parametric EQ, where supported in the WiiM Home App

Per-source EQ : Supported via WiiM Home App, where available

App customization : Sound modes, EQ, RoomFit™, input settings, grouping, and device preferences

Display & On-Device Controls

Display : Glass-covered 2.1-inch Hi-Res full-color round LCD touch screen

Display type : Round touch display

Display content : Album art, track information, time, EQ, Smart Presets, Recently Played, clock faces, dynamic wallpapers, and album art standby

Playback controls : Play, pause, skip, and like

Source controls : Source selection from the display

EQ controls : Quick EQ access on the device; deeper EQ control in the WiiM Home App

Smart Presets : One-tap access to favorite preset routines and content

Recently Played : Access to recently played playlists, stations, and shows

Personalization : Multiple clock faces, dynamic wallpapers, and album art standby

Proximity-lit capacitive buttons : Volume +, Volume –, Play/Pause, Source Switch

Status LED : RGB+W status LED

App, Voice & Remote Control

App control : WiiM Home App

Voice control : Alexa and Google Assistant

Remote : WiiM Bar Remote

Remote controls : Playback, volume, source switching, sound modes, mute/unmute, standby, and voice control where available

On-device control : 2.1-inch round touch display and proximity-lit capacitive buttons

Setup control : WiiM Home App via WiFi or Ethernet

Ecosystem control : Manage streaming, grouping, EQ, presets, and compatible WiiM devices from the WiiM Home App

Inputs, Outputs & Connectivity

HDMI : HDMI eARC

Optical : Optical In

Analog input : Line In

Ethernet : 10/100 Mbps Ethernet

USB : USB Host for storage
USB Audio Input or Output

WiFi : WiFi 6E

WiFi bands : 2.4 GHz, 5 GHz, and 6 GHz

WiFi standard : 802.11 b/g/n/ax

Bluetooth : Bluetooth 5.4

Bluetooth profiles : BLE, A2DP Rx/Tx, AVRCP, HID

LE Audio : Supported via software update

Bluetooth input : Stream from compatible phones, tablets, TVs, and laptops

Bluetooth output : Output to compatible Bluetooth speakers, headphones, or earphones, where supported

Wired network behavior : Ethernet available for a stable wired network connection

Streaming & Protocols

Streaming app : WiiM Home App

In-app streaming : Stream 20+ music services through the WiiM Home App

Casting and streaming protocols : Google Cast Audio / Chromecast Audio, Spotify Connect, TIDAL Connect, Qobuz Connect, Amazon Music Cast, DLNA/UPnP, Qplay 3.0, LMS, Roon

Example music services : Spotify, Amazon Music, YouTube Music, TIDAL, Qobuz, Deezer, TuneIn, SoundCloud, Pandora, iHeartRadio, vTuner, Napster, SoundMachine, KKBOX, Soundtrack Your Brand

AirPlay 2 : Not supported

Network playback : WiFi, Ethernet, DLNA/UPnP, and WiiM Home App

Direct app control : Supported with compatible services such as Spotify Connect, TIDAL Connect, Qobuz Connect, and Google Cast Audio

Multi-Room & WiiM Ecosystem

WiiM multi-room audio : Group WiiM Bar with compatible WiiM devices for synchronized multi-room listening

Compatible WiiM ecosystem : Designed to integrate with WiiM Amp, WiiM Ultra, WiiM Pro, WiiM Mini, and WiiM Edition speakers for multi-room music grouping

Home theater expansion : Expand from 3.0.2 to up to 5.1.2 with compatible WiiM surround and subwoofer devices

Surround setup : Use compatible WiiM devices as wireless surround channels

Subwoofer setup : Add compatible WiiM subwoofer support for deeper bass

Other multi-room options : Alexa multi-room and Google Cast multi-room, where supported

Physical input multi-room : For Line In, Optical In, HDMI eARC, or Bluetooth as multi-room sources, use a WiiM-device group

USB Media Library

USB function : USB Host for storage

Media library : Access a personal media library from connected USB storage

Media server : Can act as a media server for other WiiM and DLNA devices on the same network

Supported storage examples : USB drive or compatible external storage

Supported file systems : FAT32, NTFS, EXT4, where supported

Playback control : Browse and control USB media through the WiiM Home App
